1/2 NPT Dp Transmitter Manifold 5 Way Manifold For Pressure Transmitter

Name: 12 NPT Dp Transmitter Manifold 5 Way Manifold For Pressure Transmitter
Brand: Wuxi Daoxin Technology Co., Ltd.
Price: 1 USD

1/2 NPT Dp Transmitter Manifold 5 Way Manifold For Pressure Transmitter Manufactures

Brand Name : Wuxi Daoxin Technology Co., Ltd.

Model Number : DX-5PT

Certification : CE,CCC

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100+set+5

Delivery Time : 2-5 work days

Packaging Details : carton、25cm*25cm*30cm

Product Name : Five Way Valve Manifolds With Vent

Pressure : High Pressure

Material : Stainless Steel ALLOY Forged

Type : Instrument Manifold Valves

Media : Oil, Acid, Water, Base Etc

Temperature Of Media : High Temperature

Application : General

Size : 1/4in 3/8in 1/2in 3/4in

Contact Now

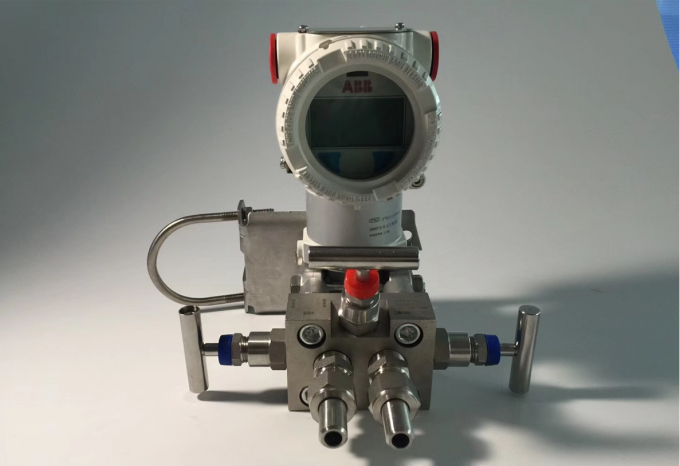

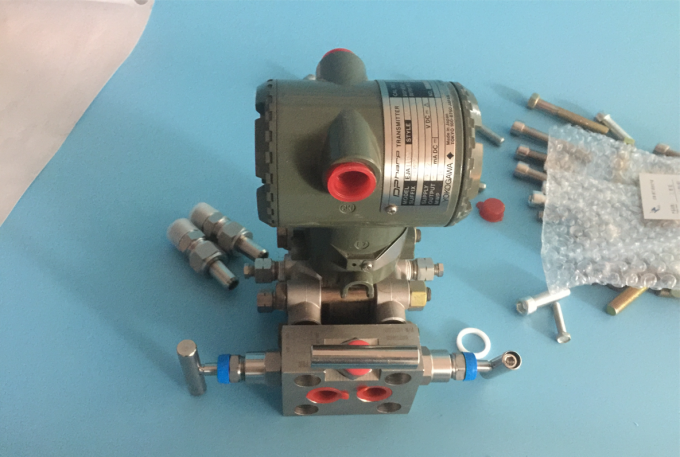

1/2 NPT Pressure Transmitter Manifold DPT Direct Mounting 5 Valve

Five-valve Manifolds Natural Gas Valve Stainless Steel 1/8" 1/4" 3/8" 1/2" 6000PSI r differential pressure measuring instruments

The five valve group is composed of high and low pressure valves, balance valves and two calibration (drainage) valve groups; the five valve group is suitable for various imported instrument devices and is matched with various differential pressure, flow, liquid level and other transmitters. During installation, close the two sets of calibration valves and balance valves during work. If you need to check, just cut off the high and low pressure valves, open the balance valve and open the two calibration valves, and then close the balance valve and the transmitter Just check and balance.

Material quality	304 316 316L HC-276 etc
Maximum pressure	304: 414BAR (6000PSI)
Maximum pressure	306: 414BAR (6000PSI)
Maximum pressure	Alloy 400 316: 414BAR (6000PSI)
Specification diameter	1/2'NPT(F) inner diameter 4 to 10MM can be customized
Working temperature	FTFE packing: -54C to 232C (-65F to 450F)
Working temperature	FTFE packing: -54C to 542C (-65F to 1200F)
